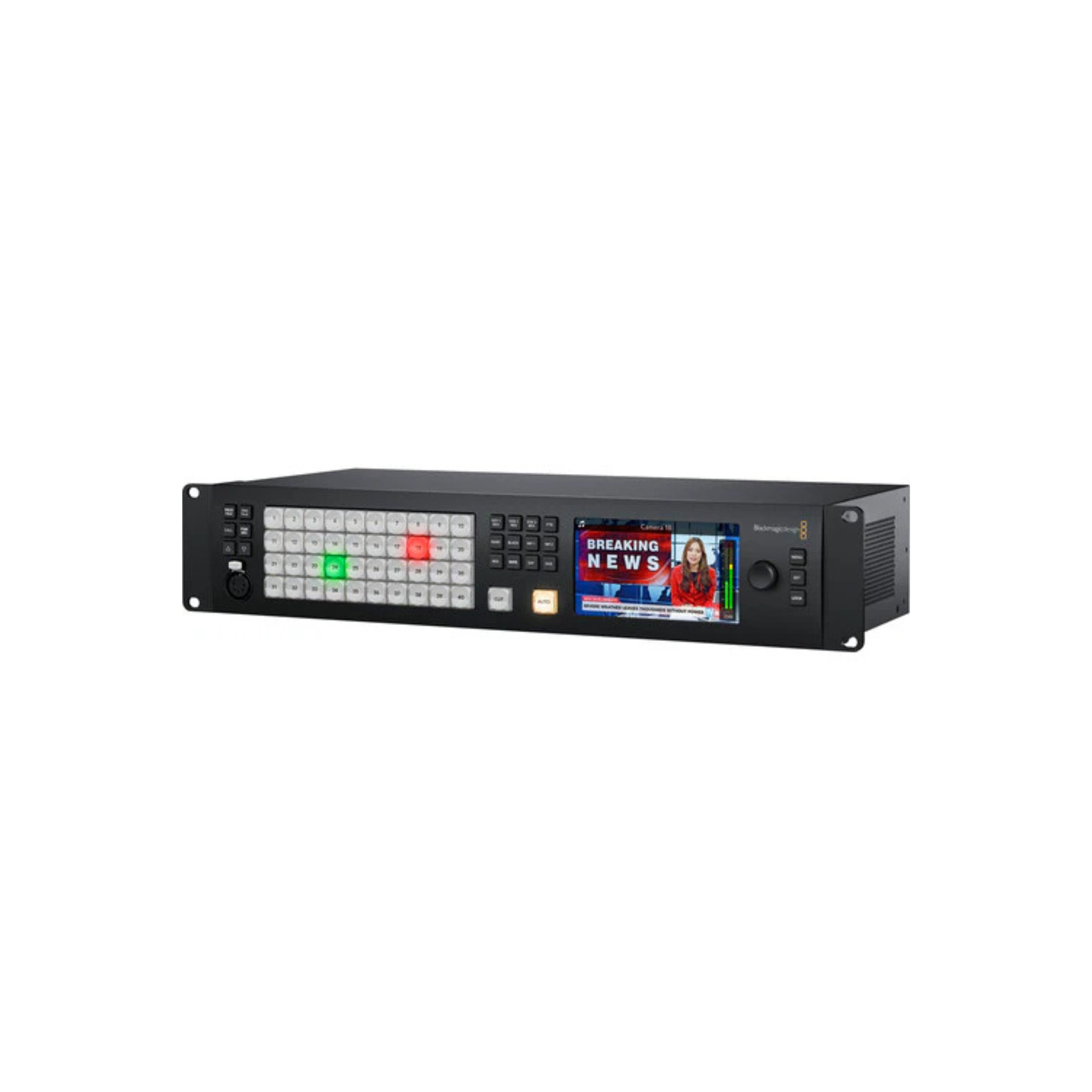

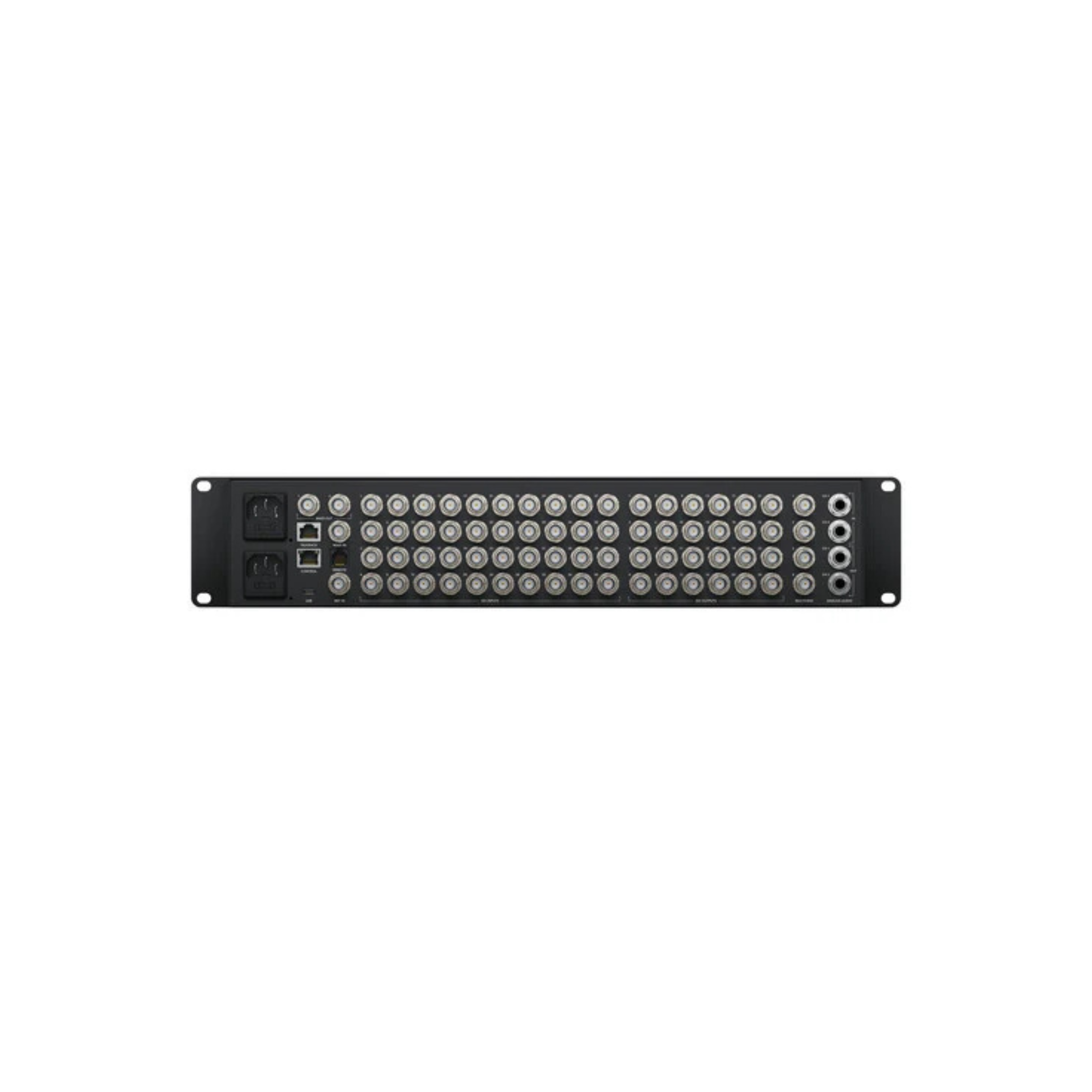

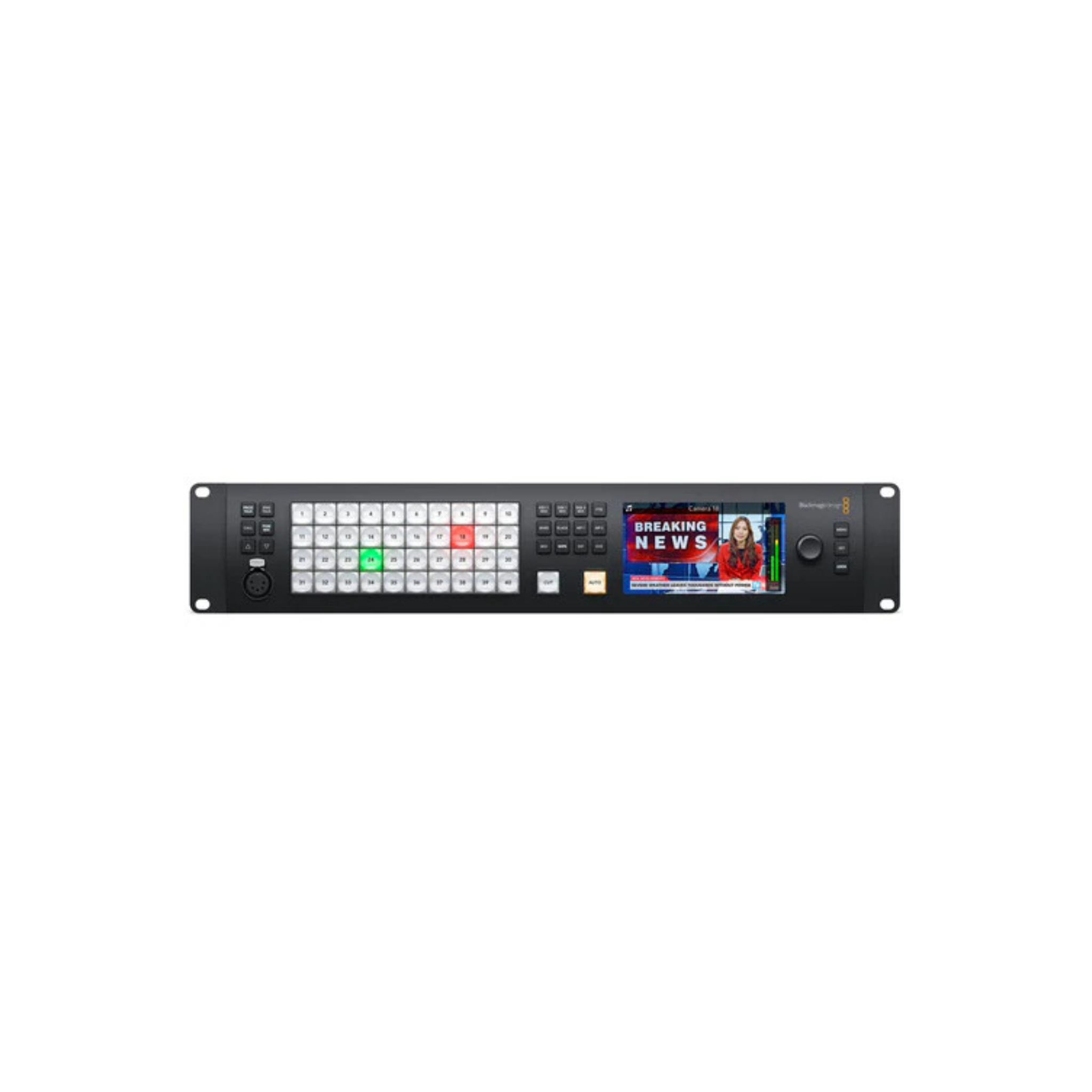

Blackmagic Design Atem 4 M/E Constellation HD

The Blackmagic Design ATEM 4 M/E Constellation HD is a powerful high-definition live production switcher built for large-scale broadcasts and complex live events. Designed for professional broadcasters, OB vehicles, houses of worship, sports productions and corporate events, it delivers an incredible combination of inputs, outputs and advanced production capabilities in a compact 2RU chassis.

Featuring 40 standards-converted 3G-SDI inputs and 24 independently routable 3G-SDI outputs, the ATEM 4 M/E Constellation HD can handle even the most demanding productions. With four independent M/E rows, 16 ATEM Advanced Chroma Keyers, four DVEs, four media players, two SuperSource processors and four configurable multiview outputs, it provides exceptional creative flexibility.

Each of the 40 inputs includes frame synchronisation and format conversion, allowing virtually any HD video source to be connected without worrying about matching frame rates or resolutions. The integrated Fairlight audio mixer provides 156 channels of professional audio processing with EQ, dynamics, audio-follow-video and MADI connectivity.

The ATEM 4 M/E Constellation HD also includes USB webcam output for direct integration with conferencing platforms and streaming software, making it ideal for modern hybrid productions.

Key Features

✓ 40 x 3G-SDI inputs with standards conversion

✓ 24 x independently routable 3G-SDI outputs

✓ 4 independent M/E rows

✓ 16 Advanced Chroma Keyers

✓ 4 DVEs plus 2 SuperSource engines

✓ 4 configurable multiview outputs

✓ 156-channel Fairlight audio mixer

✓ Integrated USB webcam output

✓ MADI audio connectivity

✓ Professional talkback and tally support

✓ Compact 2RU design for studio and flypack installations
