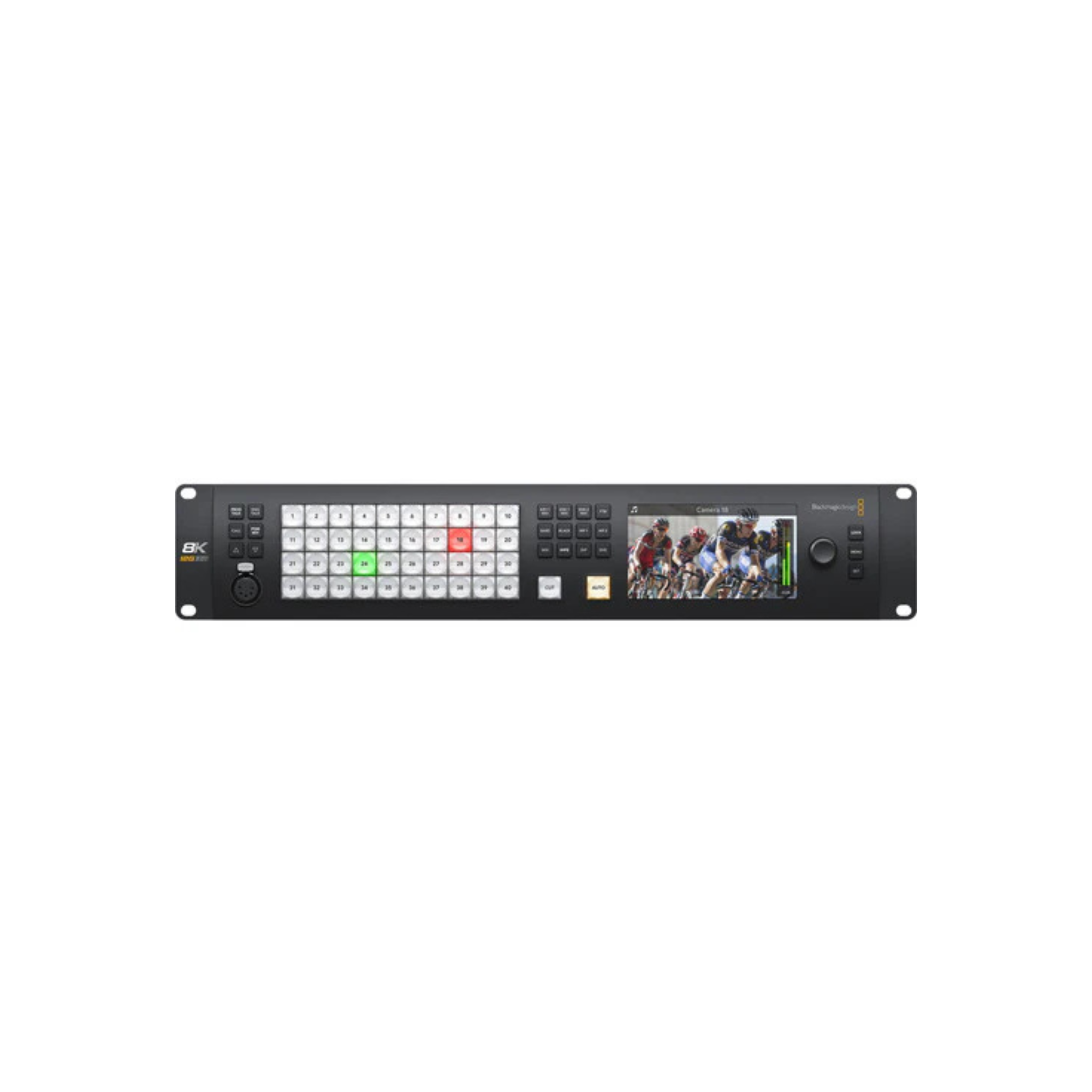

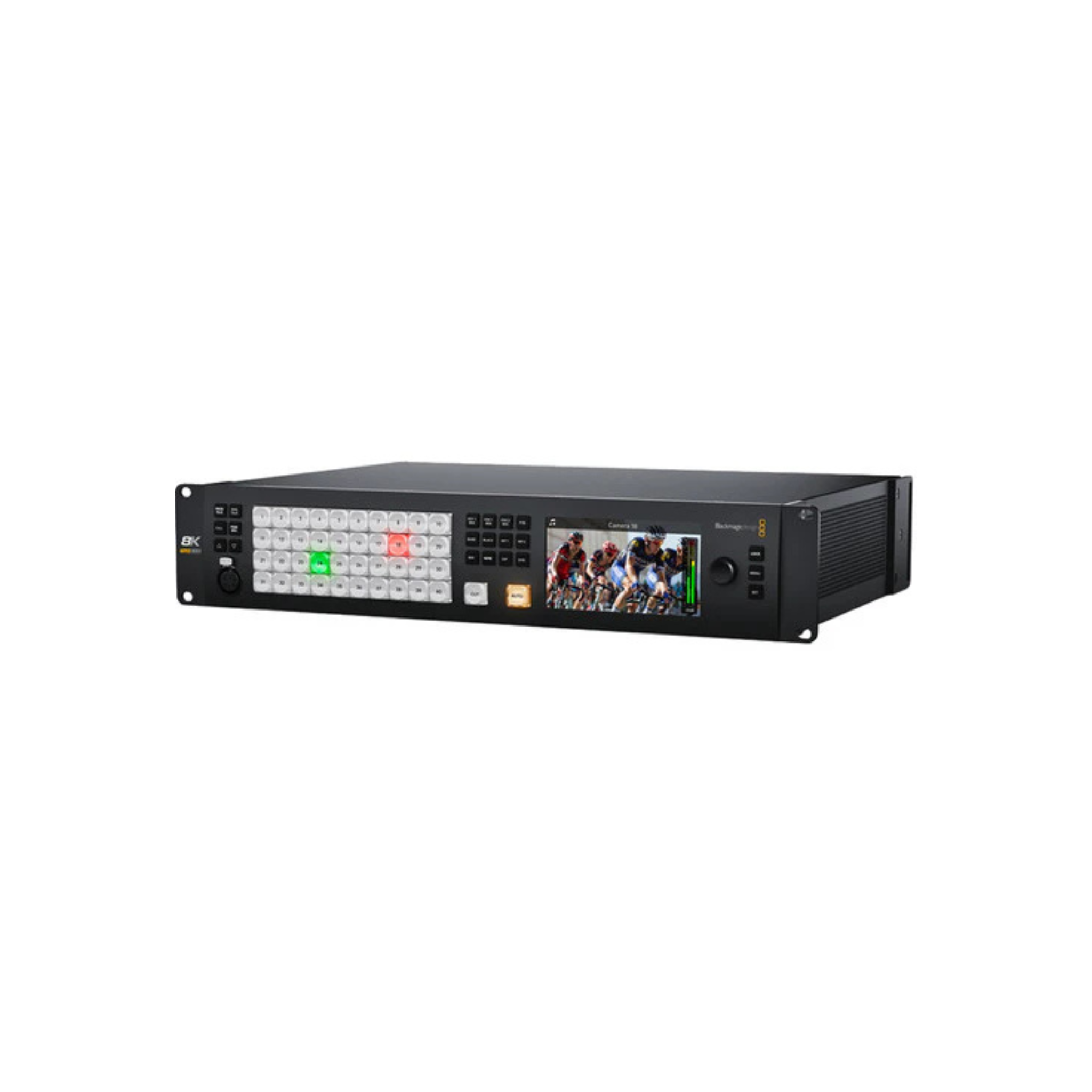

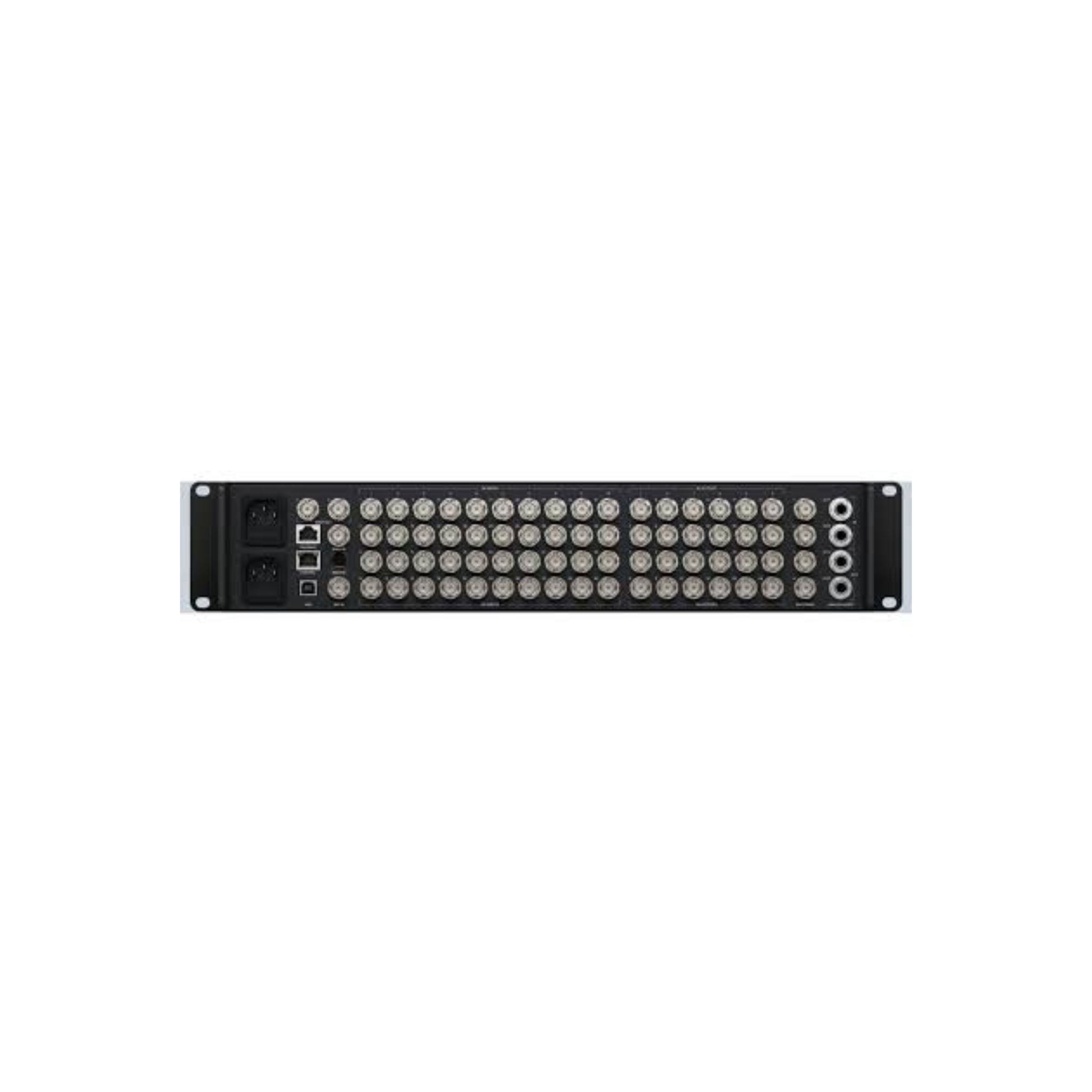

Blackmagic Design Atem Constellation 8K

The Blackmagic Design ATEM Constellation 8K is one of the world’s most advanced live production switchers, delivering exceptional performance for broadcasters, live events, sports productions and high-end studios that require both Ultra HD and native 8K workflows.

Featuring 40 independent 12G-SDI inputs and 24 12G-SDI auxiliary outputs in Ultra HD operation, the ATEM Constellation 8K provides enormous routing flexibility and processing power. When switched into native 8K mode, its resources combine to create a powerful 8K production switcher capable of handling next-generation broadcast workflows.

The switcher includes four M/E rows, 16 Advanced Chroma Keyers, four DVEs, two SuperSource processors, four media players and four independent multiview outputs. Every input includes standards conversion and frame synchronisation, allowing virtually any source to be connected without worrying about matching video formats.

For professional audio production, the integrated Fairlight audio mixer provides 156 channels of processing with EQ, dynamics, MADI connectivity and advanced audio routing.

Built for demanding broadcast environments, the ATEM Constellation 8K is the ideal solution for large studios, OB trucks, sports venues, concert productions and any organisation preparing for the future of 8K production.

Key Features

✓ Native 8K and Ultra HD live production switcher

✓ 40 x 12G-SDI inputs in Ultra HD mode

✓ 24 x 12G-SDI auxiliary outputs in Ultra HD mode

✓ Four independent M/E rows

✓ 16 Advanced Chroma Keyers

✓ Four DVEs and two SuperSource processors

✓ Four Ultra HD multiview outputs

✓ Standards conversion on every input

✓ Integrated 156-channel Fairlight audio mixer

✓ Built-in talkback and professional audio routing

✓ Designed for broadcast, sports and large-scale productions
