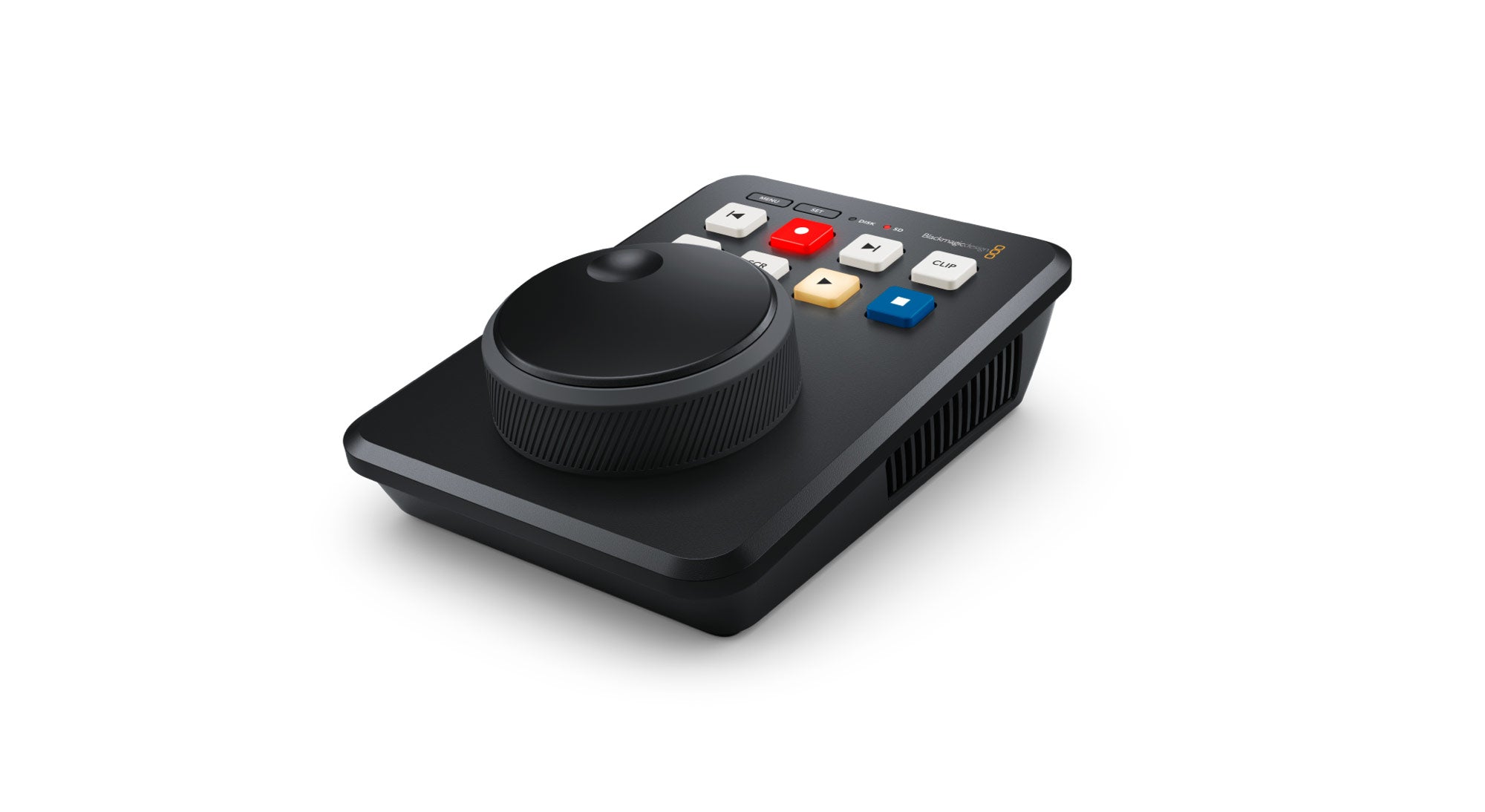

Blackmagic Design HyperDeck Shuttle HD angle view

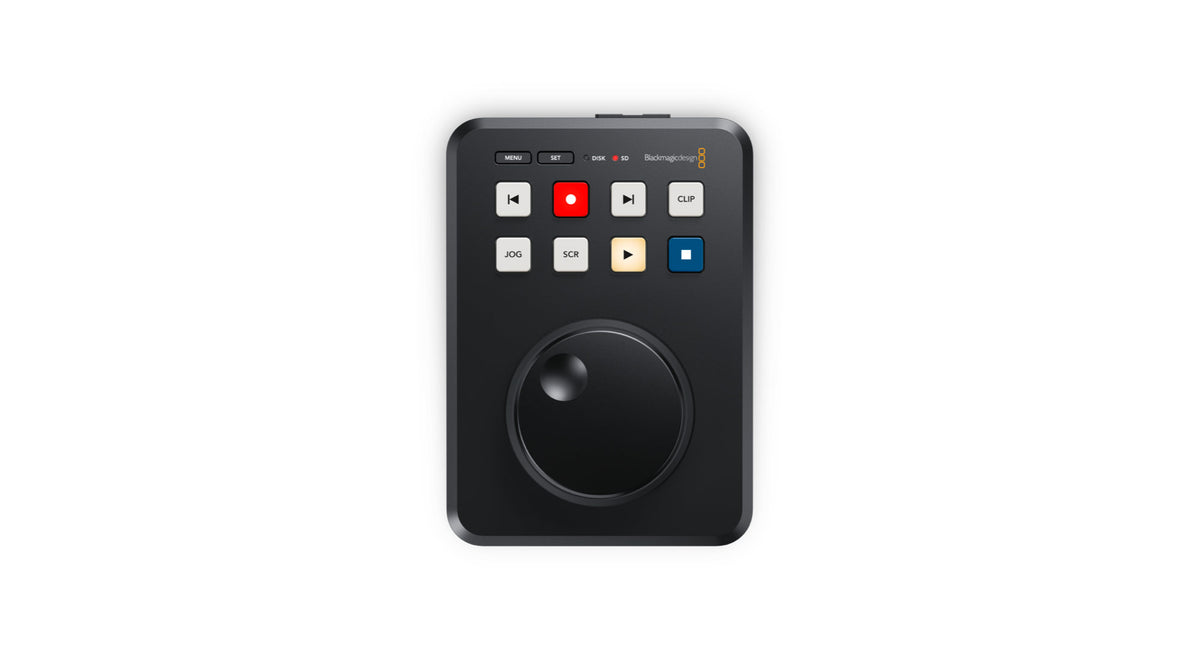

Blackmagic Design HyperDeck Shuttle HD top view

Blackmagic Design HyperDeck Shuttle HD

Name: Blackmagic Design HyperDeck Shuttle HD
Brand: Blackmagic Design
SKU: HYPERD/PTSHD
Price: 11595.00 ZAR
Availability: InStock

R 11,595.00

The Blackmagic Design HyperDeck Shuttle HD is a desktop recorder and clip player built for live production, program playback and straightforward master recording. Its console-style controls and large metal search dial make it quick to cue clips, jog through media and control playback without relying on a rack-mounted deck.

With HDMI input and output, it connects easily to cameras, monitors, projectors and compact production switchers such as ATEM Mini. It records and plays SD, HD and 2K DCI formats using ProRes, DNxHD or H.264, giving production teams a practical choice between post-production quality and space-efficient files.

Record to UHS-I or UHS-II SD cards, or connect USB-C storage for longer sessions and fast media handoff. ExFAT support keeps media accessible across Windows and Mac workflows, while HFS+ is available for Mac-based environments.

A 1Gb Ethernet connection and the Blackmagic HyperDeck Ethernet Protocol support remote deck control and FTP media upload. HDMI start/stop and timecode-run triggering can also simplify compatible recording workflows.

The built-in teleprompter can display RTF and TXT scripts through the video output, extending the unit beyond recording and playback. For studios, schools, houses of worship, corporate AV teams, content creators and live-production operators, the HyperDeck Shuttle HD provides a compact desktop deck for dependable recording, cueing and clip playback.

Blackmagic Design Blackmagic Design HyperDeck Shuttle HD

R 11,595.00

Technical Specifications

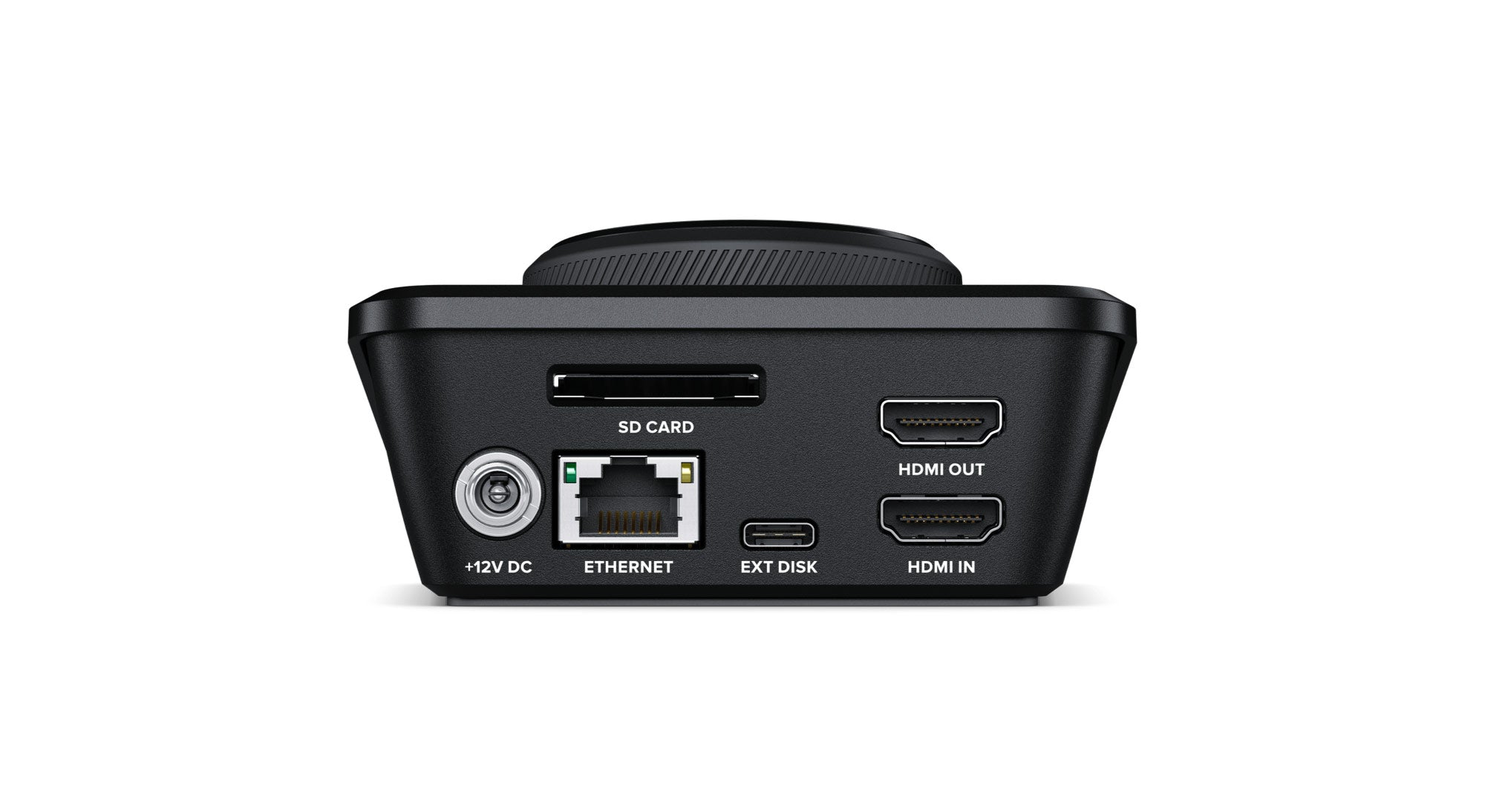

Connections
HDMI video input: 1
HDMI video output: 1
HDMI audio input/output: 8 embedded channels
Ethernet: 1Gb/s
USB-C: 1 × USB Type-C 3.0, up to 5Gb/s, for external drive recording, configuration and software updates
Recorder configuration: Onscreen interface via HDMI output or Blackmagic HyperDeck Ethernet Protocol

Video Standards
SD: 525i59.94 NTSC; 625i50 PAL
HD: 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2K DCI: 2Kp23.98, 2Kp24, 2Kp25, 2Kp29.97, 2Kp30
Multi-rate support: Automatic SD and HD detection

Video and Audio
Video sampling: 4:2:2 YUV
Colour precision: 10-bit
Colour spaces: Rec. 601 and Rec. 709
Audio sampling: 24-bit, 48kHz

Recording Media
SD card slots: 1
SD media: UHS-I and UHS-II
External recording: USB-C 3.0 expansion port for SD, HD and 2K DCI recording
File systems: ExFAT (Windows/Mac) and HFS+ (Mac)

Recording Codecs
ProRes: ProRes HQ, ProRes 422, ProRes LT and ProRes Proxy QuickTime up to 1080p60
DNxHD: 220x, 145 and 45 variants, including MXF, for 720p and 1080p up to 60fps
H.264: High, Medium and Low 4:2:0 8-bit profiles up to 1080p60

Control
Built-in controls: 10 transport/device buttons plus metal search dial
External control: HDMI start/stop, timecode run, HyperDeck Ethernet Protocol and remote FTP upload

Teleprompter
Script formats: RTF and TXT
Output frame rates: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p and 60p

Software and Compatibility
Included software: Blackmagic OS and Blackmagic HyperDeck Setup
Operating systems: macOS 15 Sequoia or macOS 26 Tahoe and later; Windows 11

Power and Environment
Power input: Locking 5.5mm barrel 12V DC
Maximum power usage: 20W
Operating temperature: 0°C to 40°C
Storage temperature: -20°C to 60°C
Relative humidity: 0% to 90% non-condensing

Warranty
1-year limited manufacturer’s warranty

Product FAQ

What resolutions can the HyperDeck Shuttle HD record?
It records SD and HD formats up to 1080p60, plus 2K DCI formats up to 30p. It does not record Ultra HD.

What recording media does it use?
It records to one UHS-I or UHS-II SD card, or to compatible external storage through USB-C. Recording media is not included.

Which recording codecs are supported?
Supported families include ProRes HQ, ProRes 422, ProRes LT, ProRes Proxy, DNxHD and H.264, with availability depending on the selected video standard and file format.

Can it be used with an ATEM Mini?
Yes. Its HDMI input and output make it suitable as a desktop recorder and clip player in an ATEM Mini workflow when both devices use compatible video formats.

Can the unit be controlled remotely?
Yes. It supports the Blackmagic HyperDeck Ethernet Protocol over 1Gb Ethernet, remote FTP media upload, and HDMI start/stop and timecode-run triggering.

Does it include teleprompter functionality?
Yes. It can display RTF and TXT scripts through its video output at supported progressive frame rates.

Who Is This For?

The Blackmagic Design HyperDeck Shuttle HD is well suited to:

• Live production teams using HDMI switchers such as ATEM Mini
• Broadcast and studio operators needing a desktop clip player
• Houses of worship and education facilities recording or replaying programme content
• Corporate AV and conference teams managing presentations and playback
• Content creators and streaming operators working with ProRes, DNxHD or H.264
• Post-production teams needing quick media review and transfer

Its desktop controls, removable media support and remote operation make it a practical choice where fast cueing, recording and playback are more important than Ultra HD or SDI connectivity.

What's Included

1 × Blackmagic Design HyperDeck Shuttle HD
1 × 12V universal power supply with international socket adapters
